If you want mist that cools the air without leaving everything damp, yes, you need a pump. A high-pressure misting pump builds water pressure up to around 1,000 psi, which is what breaks water into a mist fine enough to evaporate before it lands. Without a pump, a misting system runs at whatever pressure comes out of your garden tap, and the result is closer to a fine spray than a true mist.
Pressure is the line between a hose attachment and a proper misting system. It's also the main reason the two cost so differently. This is how it works.
Low Pressure vs High Pressure Misting
Low-pressure misting
Low-pressure misting kits connect straight to a garden tap and use household water pressure. They're cheap and easy to set up, which is why you'll find them in hardware shops every summer.
The problem is the droplet size. At tap pressure, the nozzles can't break water into very fine droplets. Larger droplets take longer to evaporate, so many of them fall before they do. That's when you get wet skin, damp furniture and puddles on the deck. They do cool a little, but much of the water ends up on the ground rather than cooling the air.
High-pressure misting
A high-pressure system uses an electric pump to raise the water pressure dramatically. Our pumps operate at 715 to 1,000 psi, depending on the model. For comparison, 1,000 psi is about 69 bar, or roughly 6,900 kPa.
At that pressure, filtered water is forced through precision nozzles and broken into droplets as small as 8 to 10 microns. Droplets that small flash evaporate, absorbing heat from the air as they turn to vapour. The result is cooling of up to 10°C in the misted area, without the wet.
Why High Pressure Is Worth It
Better cooling
Cooling comes from evaporation, and smaller droplets evaporate much faster. More of the water you use turns into cooling rather than falling to the ground.
No wetness
Because the droplets evaporate in the air, furniture, clothes and floors stay dry. That's essential for dining areas, play spaces and anywhere people sit.
Less water
High-pressure systems use very little water. Our pumps range from about 0.25 litres per minute for the smallest residential models up to 7 litres per minute for the largest commercial pump, at full capacity.
Longer runs and more nozzles
A correctly sized pump can push water through long runs of misting line and many nozzles. A tap-fed system has far less pressure to work with to begin with.
What Pressure Does a Misting System Need?

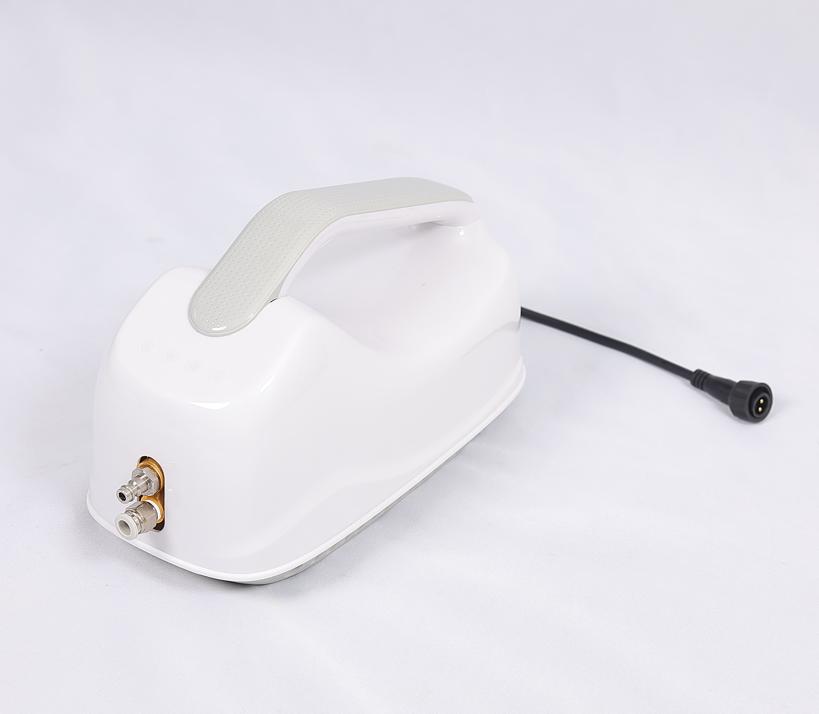

For true high-pressure misting, around 1,000 psi is the standard to look for. Our Easy Mist range runs at 715 psi, and our EcoMist, Eco Mist 50i and MistPro pumps all run at 1,000 psi.
The pressure also needs to reach every nozzle on the line. That's why the pump has to be sized to the number of nozzles you're running, so the last nozzle mists as well as the first.
How to Choose the Right Pump
Match the pump to your nozzle count

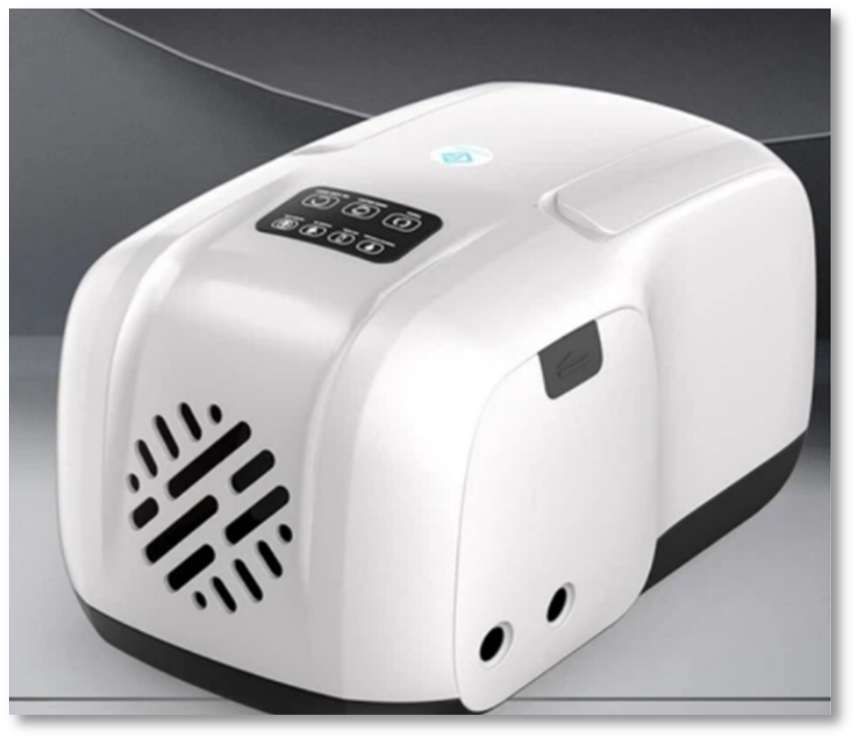

Every pump is rated for a maximum number of nozzles. Measure the area you want to cool, work out roughly how many nozzles you'll need, and choose a pump with some room to spare. As a guide, our smallest pumps run up to 6 nozzles (0.15mm), while the MistPro range runs up to 25 nozzles (0.15mm) on the MistPro-100 and up to 75 on the MistPro-300, with more again on the commercial models.
Consider the flow rate
Flow rate is how much water the pump moves per minute. A higher flow rate supports more nozzles and a larger area. Our residential pumps run from 0.25 to 3 litres per minute, and the commercial pumps from 4 to 7 litres per minute.
Think about noise
Modern pumps are much quieter than they used to be. Our residential range runs at about 48 to 60 dB. Placing the pump around a corner or in a wall-mounted pump cover helps keep it out of earshot.
Decide how you want to control it
Smaller pumps come with a remote-control key that works within 20 metres. The MistPro range adds app control, so you can schedule misting sessions from your phone. The EcoMist 50i uses inverter technology to run separate cooling zones, so you can mist one area, two, or all of them.
How the Pump Keeps the System Dry Between Cycles
Pressure matters when the pump switches off, too. Our nozzles use a patented anti-drip design. When the pump stops and the pressure drops, the nozzles shut off cleanly instead of dribbling the water left in the line onto your deck.
Looking After Your Pump
A high-pressure pump is a precision machine, and a little care goes a long way:
- Use filtered water. Sediment and scale make the pump work harder and block the nozzles. A good filter protects both.
- Follow the maintenance interval. Our pumps are due for maintenance at around 800 to 1,200 hours of use, and many models have a built-in reminder.
- Keep it out of the weather. A wall-mounted cover raises the pump off the ground and shields it from rain and sun.
Our pump kits include all the parts you need.
The Short Version
A misting system without a pump is really a sprinkler with smaller holes. If you want real cooling without wet furniture, a high-pressure pump is the part that makes it work. You can compare pumps in our online shop, browse the misting kits, or read more about our high-pressure misting systems and where they're used across outdoor cooling projects.
Frequently Asked Questions
Do you need a pump for a misting system?
For high-pressure misting, yes. A pump raises the water pressure to around 1,000 psi so the nozzles can produce ultra-fine mist that evaporates before it lands. Low-pressure kits run off a tap without a pump, but they produce larger droplets that can leave things wet.
What pressure does a misting system need?
Around 1,000 psi for true high-pressure misting. Our pumps run at 715 to 1,000 psi depending on the model.
What is the difference between low and high pressure misting?
Low-pressure systems use household tap pressure and produce larger droplets that tend to fall and wet surfaces. High-pressure systems use a pump to reach around 1,000 psi, producing droplets as small as 8 to 10 microns that evaporate quickly and cool the air.
Why is high pressure misting better?
It cools more effectively, keeps people and furniture dry, uses less water and supports longer runs with more nozzles at steady pressure.
Not sure which pump suits your space? Contact us or call 07 4946 4702 and we'll help you size it.
