Stay Cool with the Best Outdoor Misting Fans in Australia

Outdoor Cooling for all kinds of spaces

An outdoor misting fan combines powerful airflow with ultra-fine mist to provide effective cooling for outdoor and open-air spaces. Together, the moving air and fine mist help create a cooler, more comfortable environment on warmer days.

Mistech Cooling's misting fans are designed to operate as part of a high-pressure misting system. The fan provides the airflow, while the misting system produces the ultra-fine mist needed for effective mist cooling.

We have a range of fans built for patios, alfresco areas, beer gardens and worksites. Our Industrial Misting Fans are IP rated. They're designed to be mounted where the heat is, fed by a proper pump, and run for hours at a time through an Australian summer. That's a very different job to the handheld and battery misting fans you'll see in hardware stores.

With a range of fan styles and configurations available for residential, commercial and industrial applications, the right solution will depend on the space you want to cool and how you plan to use it.

Pedestal misting fan on a covered patio next to an outdoor sofa

Misting Fans

Find the Right Misting Fan for Your Space

Misting fans are available in different styles and configurations, giving you flexibility to choose an option that suits your space, how the fan will be used and where it can be positioned.

Wall-Mounted Misting Fans

Available in 450mm and 600mm sizes. Wall mounting keeps the fan off the ground while providing targeted airflow and mist cooling where it is needed.

Pedestal Misting Fans

Pedestal misting fans provide a moveable, freestanding cooling option, making them useful where permanent wall mounting isn't practical or where the fan may need to be repositioned.

Ceiling Misting Fans

Ceiling-mounted misting fans are also available for suitable spaces where an overhead cooling solution is preferred.

Pedestal misting fan beside an outdoor lounge with a dog resting on the couch

Explore Misting Fans by Application

Residential Misting Fans →



Explore misting fan options for patios, outdoor entertaining areas and other suitable spaces around the home.



Wall-mounted Mistech misting fan with a stainless steel misting ring on a brick wall



Commercial Misting Fans →



Discover misting fan options for cafés, pubs, restaurants, hospitality venues and other commercial spaces.

MTC-450 commercial misting fans mounted on a pole under a shade sail



Industrial Misting Fans →

Explore heavy-duty misting fan options for workplaces and industrial environments where reliable cooling is required.

Close-up of a misting fan spraying ultra-fine mist outdoors

How Do Misting Fans Work?

Misting fans combine airflow with high-pressure mist cooling. Water is pressurised via a pump and passed through specialised misting nozzles, to create an ultra-fine mist, while the fan distributes the mist and encourages natural evaporation.

High-pressure mist + airflow + natural evaporation = effective mist cooling.

Why Airflow Matters

Air movement is an important part of mist cooling. The fan helps distribute the ultra-fine mist, encouraging evaporation.

This can be particularly valuable in hot, humid conditions, where evaporation naturally occurs more slowly.

Misting Fans Require a High-Pressure Pump

The fan is only one part of a complete misting system. To produce the ultra-fine mist needed for effective mist cooling, the fan must be connected to an appropriate high-pressure misting pump.

The appropriate pump will depend on the misting fan setup and the cooling requirements of your application.

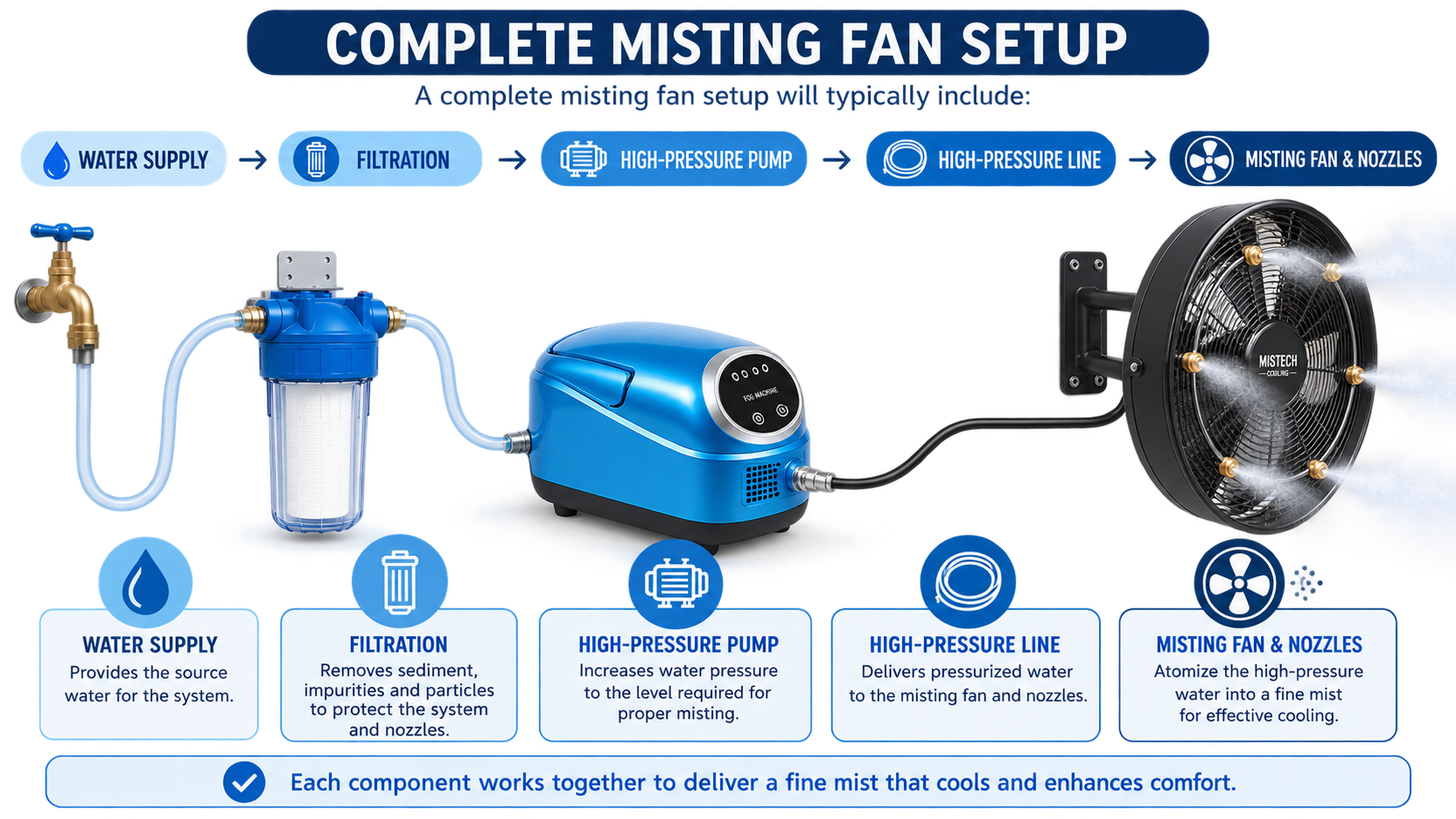

Diagram of a complete misting fan setup: water supply, filtration, high-pressure pump, high-pressure line and misting fan

Why a High-Pressure Pump Beats a Garden-Hose Misting Fan

Cheap misting fans connect straight to a garden tap and run at mains pressure, which is usually well under 100 psi. At that pressure, the nozzles can only break water into fairly large droplets. The result is familiar to anyone who has tried one:

  • Droplets land on skin, tables and food before they evaporate, so you feel damp rather than cool
  • Nozzles drip when the pressure drops or the tap is turned off
  • Mineral build-up from tap water blocks the small nozzles quickly
  • The mist only reaches a short distance in front of the fan

A high pressure misting pump pushes water through the nozzles at roughly 1,000 psi, producing droplets as small as 8–10 microns. Droplets that fine evaporate in the air, which is where the cooling actually happens. The fan then carries that cooled air much further across the space.

The pump is also sized to the total number of nozzles, not the number of fans. One pump can often run several fans, or a combination of fans and an outdoor misting system mist line along a pergola or awning.

Not sure what you need? Book a call and we'll help you find the right misting fan setup for your outdoor space.

Book a Call

How to Choose the Best Misting Fans for Your Space

The best misting fans for one space can be the wrong choice for another. These are the factors that make the biggest difference.

Wall vs pedestal vs ceiling

  Wall-mounted Pedestal Ceiling
Best for Patios, alfresco areas, beer gardens, workshops Events, sporting areas, spaces that change layout Covered areas with enough roof height
Airflow Directed across the space, with the longest mist throw Aimed wherever it's placed and moved as needed Pushed downward over the area below, 360 degree cooling
Installation Fixed bracket, with water and power run to the wall Freestanding, with a flexible water line to the pump Fixed to a solid roof structure
Floor space None Needs a clear spot and a safe hose route None
Sizes 450mm and 600mm 450mm and 750mm 14 inch or 18 inch

Coverage area

Think about coverage as a zone in front of the fan rather than a set number of square metres. A wall fan cools the area its airflow reaches, so long or wide spaces usually need two or more fans with overlapping throw. As a general guide, wall fans sit around 2.1 to 3.5 metres high and angle down over the people you want to cool.

Fan size

A 450mm fan suits a home patio, a few café tables or a smaller covered area. A 600mm fan moves more air and throws mist further which suits larger alfresco spaces and beer gardens. For hospitality venues, our commercial misting fan options cover busier outdoor areas. For warehouses, loading docks and worksites, an industrial misting fan is built for heavier use.

Water use

Water use depends on the nozzles on each fan's misting ring and the pump, not the fan itself. High-pressure nozzles use a small amount of water each hour, and because the mist evaporates, nothing runs off or pools underneath. We'll give you a figure for your setup when we plan the system.

Power

Both the fan and the pump need a 240V power point, ideally a weatherproof outdoor outlet close to where they're mounted. Any new outlet must be installed by a licensed electrician. Many setups put the fan and pump on the same switch or timer so they always run together.

Outdoor and IP rating

An IP rating tells you how well the motor is protected against dust and water:

  • IPX4: protected against splashing water from any direction
  • IP44: splash protection, plus protection against small solid objects
  • IP65: dust-tight and protected against water jets

For an outdoor misting fan, check the motor carries a rating suited to where it will live. A fan under a covered patio faces far less weather than one on an exposed wall.

Outdoor Misting Fan Specifications

  Heavy Duty Misting Fan 450mm or 750mm MTC Misting Fans 450mm or 600mm
Blade diameter 450mm or 750mm 450mm or 600mm
Mounting options Wall, Pedestal Wall Mount
Nozzles on misting ring 4 to 6 Nozzles 4 to 6 Nozzles
Airflow / mist throw 3 to 6m or 6 to 10m 6 to 8m or 6 to 10m
Motor IP rating 100% Copper Wound Motor IP54
Power 240V 240V
Pump required Yes – high-pressure pump Yes – high-pressure pump

Misting Fan Australia-Wide Delivery and Support

We supply each misting fan Australia-wide, along with the pumps and components to run it. Push-in fittings keep the setup DIY-friendly, and a licensed plumber or air conditioning tech can handle the install if you'd prefer.

Before you order, we'll help you work out the right fan size, how many fans you need, where they should go and which pump will run them. That way everything arrives ready to work together.

What Our Customers Say

“Everything arrived quickly and looked great. I found it quite easy to set up. Clayton was super easy to talk to and available when I needed a hand.”

– Mick Peterson

Outdoor Misting Fan FAQs

Do I need a pump to run a misting fan?

Yes. Our misting fans are designed to connect to a high-pressure pump. The pump creates the ultra-fine mist, and the fan spreads it across the space.

Can one pump run more than one fan?

Usually, yes. Pumps are sized to the total number of nozzles in the system, so a single pump can often run several fans. We'll size the pump for your setup.

Do misting fans work in humid weather?

They do, and airflow is the reason. Moving air helps the mist evaporate, which is why fans are a popular choice in humid parts of Queensland where mist lines alone can struggle.

Will a misting fan wet people or furniture?

A high-pressure fan mounted at the right height and angle shouldn't. Dampness usually comes from a fan that's mounted too low, pointed straight at nearby seating, or running on low-pressure water.

Are these the same as portable misting fans?

No. Handheld and battery misting fans are designed to cool one person. An outdoor misting fan is a fixed or freestanding unit that cools a whole patio, venue or work area.

Call us on 07 4946 4702, use our Quote Estimate tool, or book a call to plan the right outdoor misting fan setup for your space.
